| ■ Product description |

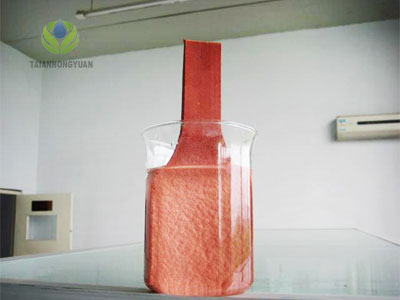

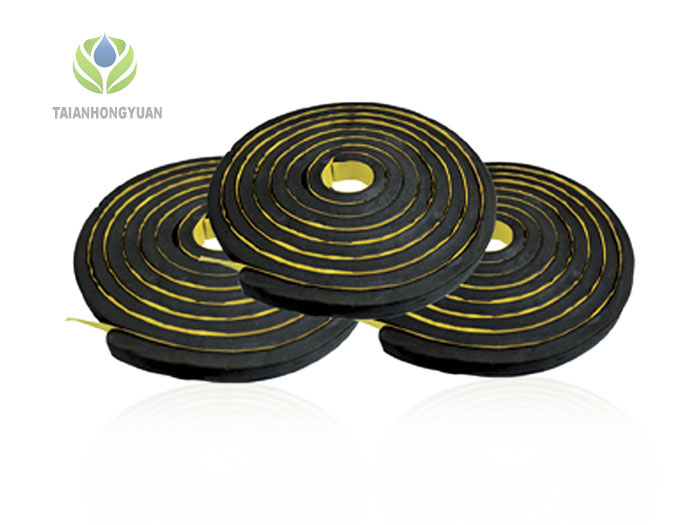

Waterstop strips is a hydrophilic swelling bentonite waterstop. The based material is bentonite clay with polymer rubber. The product swell when contact with water create more than 300% expansion. The release benonite fill void between the two portion of concrete joint.
| ■ Area of uses |
◇ Construction joints. ◇ Water tank, waste water tank. ◇ Tunnels. ◇ Basements. ◇ Elevator pits. ◇ Retaining walls. ◇ Pipe penetration. ◇ King post. ◇ Sheet pile joint. ◇ Precast concrete structure. ◇ Block out. ◇ Pile cap.
| ■ Advantages |
◇ Withstand hydrostatic pressure. ◇ Can use in portable water tanks. ◇ Fast and easy installation. ◇ Fast track project. ◇ Easy to joining. ◇ Durability. ◇ Economical. ◇ Easy to transport.
| ■ Applications |
1. Vertical and horizontal concrete construction joints;
2. Junction of old and new buildings;
3. Around wall pipe (including pipe and cable ducts);
4. Can be constructed in irregular surface;
5. Sealing the gap of all kinds of buildings, tunnels, underground projects and water engineering.
| ■ Main Advantages |

1. Construction simple, rapid, individual could be independent construct;
2. Easy to install and cut, no weld seams and other installation accessories;
3. Active sealing performance and permanent stability;
4. Comprehensive cost-effective;
5. Can be construct in both cold and hot weather, and can be used in the irregular surface;
6. Domestic and international practice proved to be the best construction joint waterproofing products.
| ■ Product Specifications |
| Length(mm) | Width(mm) | Thickness(mm) |
| 5000 | 20 | 30 |
| 5000 | 10 | 20 |
| Standard Specifications | 1.Section Size:20mmX25mm;2. Length:5.0m/roll;3.Package:10rolls/box. | |
| Size bias | Length is within specification value+1%,width and thickness is within specification value+1%.Other special specification and size is confirmed by two sides. | |
| Items | Index | ||||||
| Common | Slow-swelling | ||||||
| Anti-water pressure,Mpa | 1.5 | 2.5 | |||||
| Water welling rate in specified time/% | 4h | 200-250 | ---- | ||||
| 24h | ---- | 200-250 | |||||
| 48h | |||||||
| 72h | |||||||
| 96h | |||||||
| 120h | |||||||
| 144h | |||||||
| Maximum water swelling ratio/% | 400 | 300 | |||||
| Density,g/cm3 | 1.6±0.1 | 1.4±0.1 | |||||
| Heat resistance | 80°C,2h | ---- | No flow | ||||
| 150°C,2h | No flow | ---- | |||||
| Low temperature flexibility | -20°C,2h circleΦ20mm Rods | ---- | No crack | ||||
| -35°C,2h circleΦ20mm Rods | No crack | ---- | |||||
| Water resistance | Soak 24h | No mud | ---- | ||||
| Soak 240h | ---- | Overall expansion,no fragments | |||||
| Items | Index | |||
| Common | Slow-swelling | |||
| Anti-water pressure,Mpa | 1.5 | 2.5 | ||
| Water welling rate in specified time/% | 4h | 200-250 | ---- | |
| 24h | ---- | 200-250 | ||
| 48h | ||||
| 72h | ||||
| 96h | ||||
| 120h | ||||
| 144h | ||||
| Maximum water swelling ratio/% | 400 | 300 | ||
| Density,g/cm3 | 1.6±0.1 | 1.4±0.1 | ||
| Heat resistance | 80°C,2h | ---- | No flow | |
| 150°C,2h | No flow | ---- | ||
| Low temperature flexibility | -20°C,2h circleΦ20mm Rods | ---- | No crack | |
| -35°C,2h circleΦ20mm Rods | No crack | ---- | ||
| Water resistance | Soak 24h | No mud | ---- | |
| Soak 240h | ---- | Overall expansion,no fragments | ||

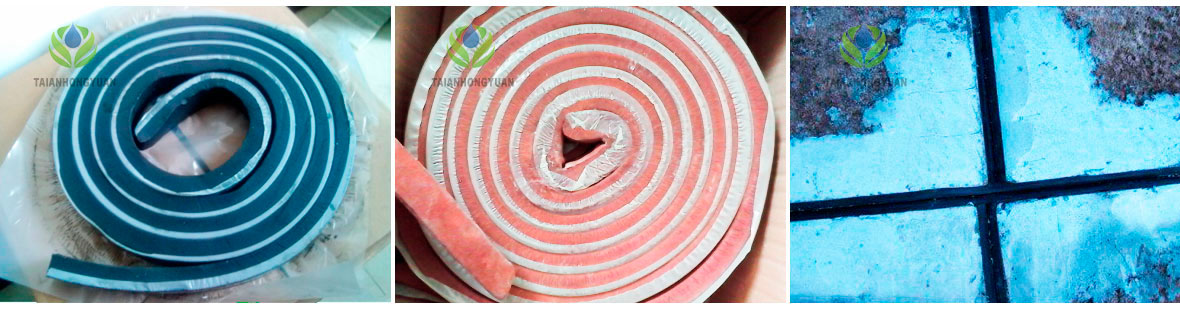

| ■ Installation and Notes |
